| 高强度100级合金吊链,具有较高的极限工作载荷 | ||||||||||
| 符合EN818和ISO 3076标准有关规定 | ||||||||||
| ● G100 chains is developed in order to meet the world requirement | ||||||||||
| ● All chain meets the dimensional requirements of EN 818-2 and ISO 3076 | ||||||||||
| ● G100 chains are 25% stronger than existing G80 chains | ||||||||||

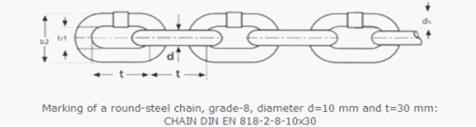

| Dia | pitch | width | weight | Working load limited (t) | Proof load kN min. | Breaking load kN min. | ||||
| d | t | b1 min. | b2 max. | Kg/M | G80 | G100 | G80 | G100 | G80 | G100 |
| 6 | 18 | 7.8 | 22.2 | 0.79 | 1.12 | - | 27 | - | 45.2 | - |
| 7 | 21 | 9.1 | 25.9 | 1.07 | 1.5 | 2 | 37 | 49 | 61.6 | 78 |
| 8 | 24 | 10.4 | 29.6 | 1.38 | 2 | 2.5 | 48 | 61 | 80.4 | 98 |
| 10 | 30 | 13 | 37 | 2.2 | 3.15 | 4 | 76 | 98 | 125 | 156 |
| 12 | 36 | 15 | 42 | 3.1 | 4.6 | - | 109 | - | 181 | - |
| 13 | 39 | 16.3 | 46 | 3.8 | 5 | 6.7 | 128 | 164 | 214 | 262 |
| 14 | 42 | 18 | 49 | 4.13 | 6.3 | - | 150 | - | 250 | - |
| 16 | 48 | 20 | 56 | 5.63 | 8 | 10 | 192 | 245 | 320 | 392 |
| 18 | 54 | 23 | 63 | 6.85 | 10 | - | 246 | - | 410 | |
| 19 | 57 | 23.7 | 63.2 | 7.7 | 11.3 | 14 | 270 | 343 | 450 | 548 |
| 20 | 60 | 25 | 70 | 8.6 | 12.5 | 15.6 | 300 | 382 | 500 | 612 |
| 22 | 66 | 28 | 77 | 10.2 | 15.3 | 19.1 | 366 | 468 | 610 | 748 |
| 23 | 69 | 29.9 | 85.1 | 12 | 16 | - | 415 | - | 665 | - |
| 25 | 75 | 32.5 | 92.5 | 14.1 | 20 | - | 491 | - | 785 | - |
| 26 | 78 | 35 | 91 | 14.87 | 21.3 | 27 | 510 | 661 | 850 | 1058 |
| 28 | 84 | 36.4 | 104 | 17.6 | 25 | - | 616 | - | 985 | - |
| 30 | 90 | 38 | 105 | 19.6 | 28.3 | - | 678 | - | 1130 | - |
| 32 | 96 | 40 | 106 | 22.29 | 32.2 | 40 | 772 | 980 | 1286 | 1568 |
| 34 | 102 | 46.5 | 121.5 | 25.5 | 36.3 | - | 870 | - | 1450 | - |
| 36 | 108 | 49.5 | 128.5 | 31 | 40.7 | - | 978 | - | 1630 | - |
| 38 | 114 | 52 | 136 | 32 | 45.3 | - | 1086 | - | 1810 | - |
| 40 | 120 | 52 | 148 | 36 | 50 | - | 1260 | - | 2010 | - |
| 42 | 126 | 55.5 | 144.5 | 38.6 | 55.4 | - | 1332 | - | 2200 | - |
| 45 | 135 | 58.5 | 167 | 45.5 | 63 | - | 1590 | - | 2540 | - |
| 48 | 144 | 62.4 | 177.6 | 52 | 72.3 | - | 1736 | - | 2894 | - |
| 50 | 150 | 65 | 185 | 55.93 | 80 | - | 1884 | - | 3140 | - |
| 52 | 156 | 67.6 | 192.4 | 59 | 85 | - | 1700 | - | 3400 | - |
| 56 | 168 | 72.8 | 207.2 | 72.5 | 100 | - | 2363 | - | 3939 | - |
| 63 | 190 | 81.9 | 233.1 | 89 | 125 | - | 2991 | - | 4985 | - |
| 71 | 210 | 91 | 259 | 110 | 160 | - | 3693 | - | 6154 | - |
