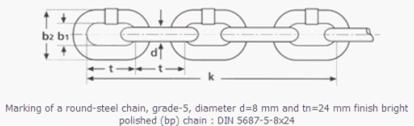

| Nominal diameter | Pitch | Width | Weight | Breaking Load | |||
| d | tolerance | t | tolerance | b1 min. | b2 max. | Kg/m | kN min. |
| 6 | ±0.2 | 18 | ±0.5 | 8 | 21.6 | 0.8 | 45.22 |
| 8 | ±0.3 | 24 | ±0.7 | 10.8 | 28.8 | 1.4 | 80.33 |
| 10 | ±0.4 | 30 | ±0.9 | 13.5 | 36 | 2.2 | 125.6 |
| 13 | ±0.5 | 39 | ±1.2 | 17.5 | 46.8 | 3.8 | 212.26 |
| 16 | ±0.6 | 48 | ±1.4 | 21.5 | 57.6 | 5.7 | 321.54 |
| 18 | ±0.9 | 54 | ±1.6 | 24.3 | 64.8 | 7.3 | 406.94 |
| 20 | ±1 | 60 | ±1.8 | 27 | 72 | 9 | 502.4 |
| 22 | ±1.1 | 66 | ±2 | 29.5 | 79.2 | 10.9 | 607.9 |
| 26 | ±1.3 | 78 | ±2.3 | 35 | 93.6 | 15.2 | 849.06 |
| 28 | ±1.4 | 84 | ±2.5 | 37.8 | 100.8 | 17.6 | 984.7 |
| Allowable WLL's at temperatures | |||||||
| - 40°C to +200°C | + 200°C to +300°C | + 300°C to +400°C | |||||
| 100% | 90% | 75% | |||||
