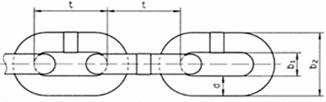

| Nominal diameter | Pitch | Width | Working load | Test load | Breaking load | Weight | ||
| d | tolerance | t | tolerance | b2 (max) | kN. max. | kN. | kN. min. | Kg/m |
| 2 | 22 | ±1.0 | 8 | 25 | 0.8 | 1.25 | 0.06 | |
| 3 | 26 | ±1.2 | 12 | 55 | 1.05 | 3.2 | 0.15 | |
| 4 | 32 | ±1.5 | 16 | 100 | 2.5 | 6.5 | 0.27 | |
| 5 | 0.5 | 35 | ±1.8 | 20 | 160 | 4 | 10 | 0.43 |
| 6 | 42 | ±2.0 | 24 | 200 | 5 | 12 | 0.63 | |
| 7 | 49 | ±2.5 | 28 | 300 | 7.5 | 19 | 0.86 | |
| 8 | 52 | ±2.5 | 32 | 400 | 10 | 25 | 1.1 | |
| 9 | 59 | ±3.0 | 36 | 530 | 10.5 | 32 | 1.41 | |
| 10 | 65 | ±3.2 | 40 | 630 | 16 | 40 | 1.75 | |
| 11 | 72 | ±3.4 | 44 | 790 | 15.8 | 47.5 | 2.11 | |
| 12 | 78 | ±3.6 | 48 | 940 | 18.8 | 56.5 | 2.55 | |
| 13 | 82 | ±4.0 | 52 | 1000 | 25 | 63 | 2.95 | |
| 16 | 100 | ±5.0 | 64 | 1600 | 40 | 100 | 4.45 | |
| 18 | 113 | ±5.2 | 70 | 2120 | 42.3 | 127 | 5.65 | |
| 19 | 119 | ±5.6 | 72 | 2370 | 47.3 | 142 | 6.25 | |
| 20 | 120 | ±6.0 | 75 | 2500 | 50 | 160 | 7 | |
| 22 | ±1 | 127 | ±6.0 | 82 | 3170 | 63.3 | 190 | 8.55 |
| 25 | 140 | ±6.6 | 85 | 4090 | 81.7 | 245 | 10.9 | |
| 28 | 152 | ±7.0 | 96 | 6000 | 120 | 300 | 13.9 | |
| 32 | 171 | ±7.8 | 108 | 8000 | 160 | 400 | 18.2 | |
